Our Mechanical Expanding Core Chucks are precision-engineered solutions designed to provide secure, reliable, and efficient core holding for various winding, unwinding, and rewinding applications. Built for durability and high performance, these chucks ensure perfect concentricity, consistent torque transmission, and minimal core damage — even in demanding production environments.
Ideal for paper, film, foil, textile, and packaging industries, mechanical expanding chucks deliver exceptional gripping force through a simple mechanical expansion system. They are compatible with both shafted and shaftless operations and can accommodate a wide range of core diameters.
Key Features:
- High gripping power with mechanical expansion mechanism
- Suitable for 3” and 6” cores (custom sizes available)
- Heavy-duty design for high-speed applications
- Easy installation and low maintenance
- Long service life with replaceable wear parts
Whether you need precision winding or secure roll handling, our mechanical expanding core chucks offer unmatched performance, reliability, and efficiency.
7500 TR Series Torque Activated Mechanical Expanding Core Chuck
Torque-activated expanding core chucks are fitted with segmented sectors (“leaves”) that expand using the torque of the movement of the reel; this creates optimal centring of the chuck in the core. Torque-activated core chucks are available in numerous diameters, single-diameter or double-diameter versions. Self-expanding and self-centring, locking in both rotation directions, built in treated steel to enhance its hardness with a rust-proofing treatment. The Pads are guaranteed to expand even on low torque values. Chucks are available for sizes ranging from 70 mm to 12” versions. Single-diameter version is available with the flange for the ejection of the core of the spring and flange for the ejection of the core
- High load & Torque capacity.
- Bi-directional operation.
- Synchronised concentric pads.
- Very little maintenance required

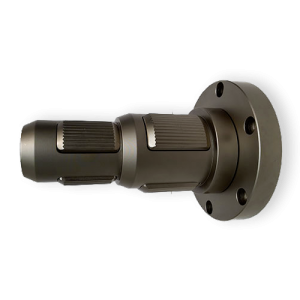

7500 TR Series Torque Activated Dual-Diameter Mechanical Core Chucks
The chucks have the same characteristics as the TR series of Mechanical Chucks but are supplied with 2 different diameters, making it possible to work on different core diameters without dismantling the chuck.
- No Changeover required for different core sizes.
7500 TRM Series Modular Torque Activated
Mechanical Expanding Chuck
The characteristics of TR series of Mechanical Chucks (dimensions, uses, etc.) are maintained, but the TRM range of chucks allows quick interchangeability of the core adaptors onto one centre spindle. This makes the chuck versatile for applications where various core sizes are used. A quick change of core size can be achieved by removing the Central bolt and replace by fitting a different size hub.
- High load & Torque capacity.
- Bi-directional.
- Synchronised concentric pads.
- Fast and simple in-situ maintenance.
- Rapid changeover of different core sizes
7600 Series Air Mechanical Chucks
Pneumatic Mechanical Chucks are ideal for high weight high torque shaftless applications. Due to their versatility, they can be used in many different fields: paper converting, corrugated cardboard, non-woven, medical and labelling, on various types of machines including slitter rewinders, unwinders and any shaftless machines. The chucks can be supplied with Expanding adaptors which utilise the chuck to expand, to suit a larger core diameter.
- Mechanical highly concentric gripping.
- High torque.
- Durable High quality construction
- Air operated – Auto Inflation or Air Gun Inflation
- High load capacity.
- Core Adaptors – optional
7700 Series Axial Thrust Side Pressure Mechanical Expanding Lug Type Core Chucks
The Axial Side Pressure Chucks expand by axial compression of the chuck using side pressure from the Reelstand which guarantees the high grip of the chuck. The Chucks can be supplied as single-diameter core chucks of 3″, 4″, 5″, 6″ and 12″ diameters. Single-diameter lug core chucks models are available with a central bore for a photocell and/or with a flange for ejection of the core.
- Concentric gripping.
- No air supply required.
- Side Activated Chuck
7700 Series Axial Thrust Side Pressure Mechanical Expanding Dual-Diameter Lug Type Core Chucks
The Dual Diameter chucks have the same characteristics as the Single Axial Side Pressure Chucks but are supplied with 2 different diameters, making it possible to work on different core diameters without dismantling the chuck. The double-diameter model is available with 3″/4″ and 3″/6″) diameters, however other combinations are available.
- Concentric gripping.
- No air supply required.
- Side Activated Chuck
